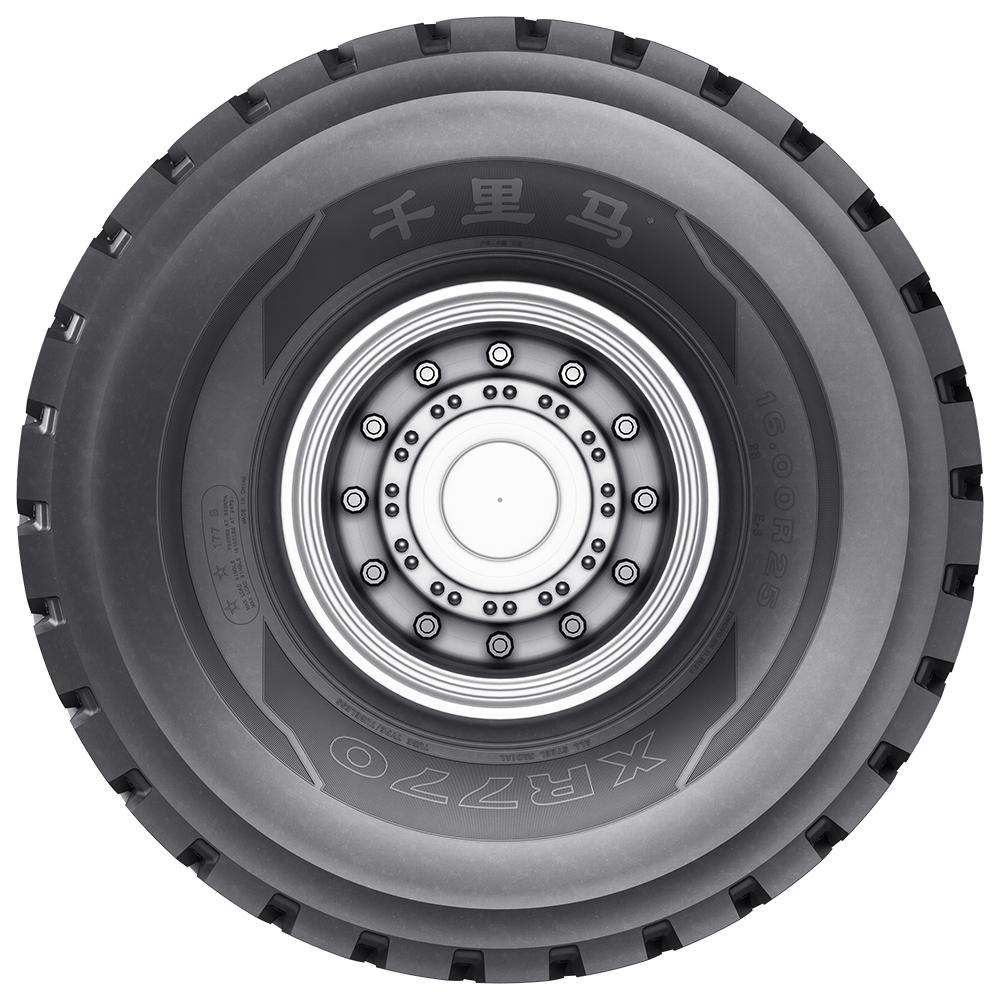

XR770
XR770 Car type

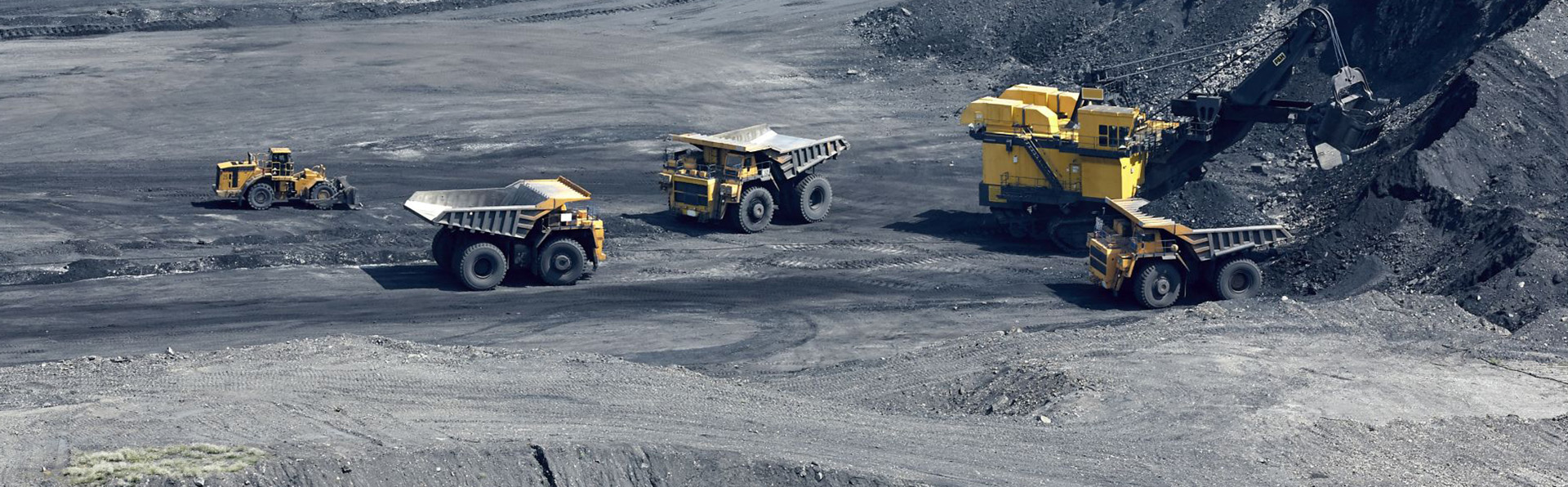

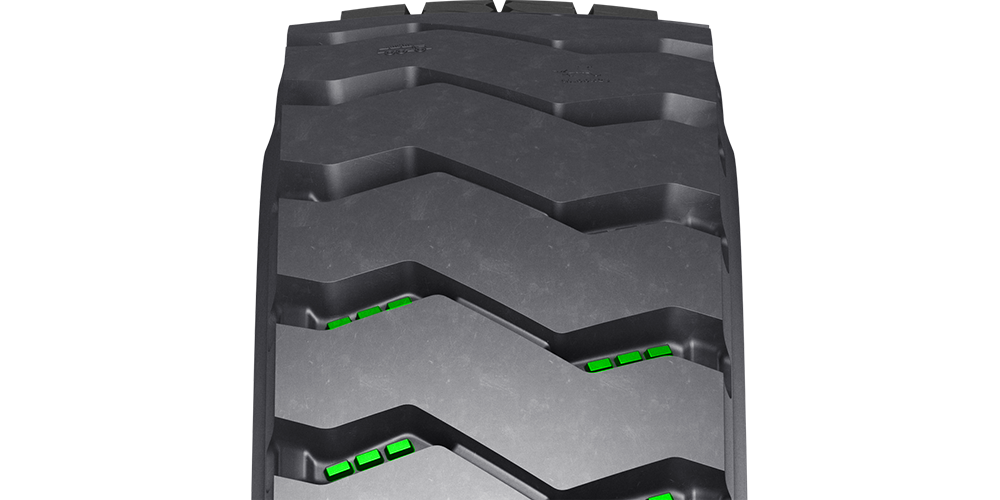

The XR770 is built tough for mining dump trucks working on hard, dry surfaces. Their robust tread blocks and heavy-duty shoulders provide excellent stability and resist damage. Built-in stone ejectors in the grooves enhance self-cleaning and protect the tire carcass from sharp stones.

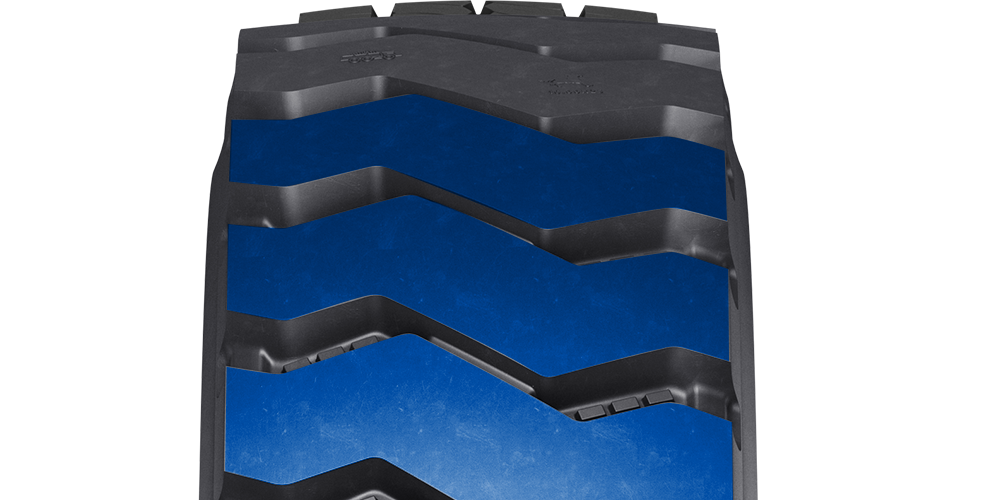

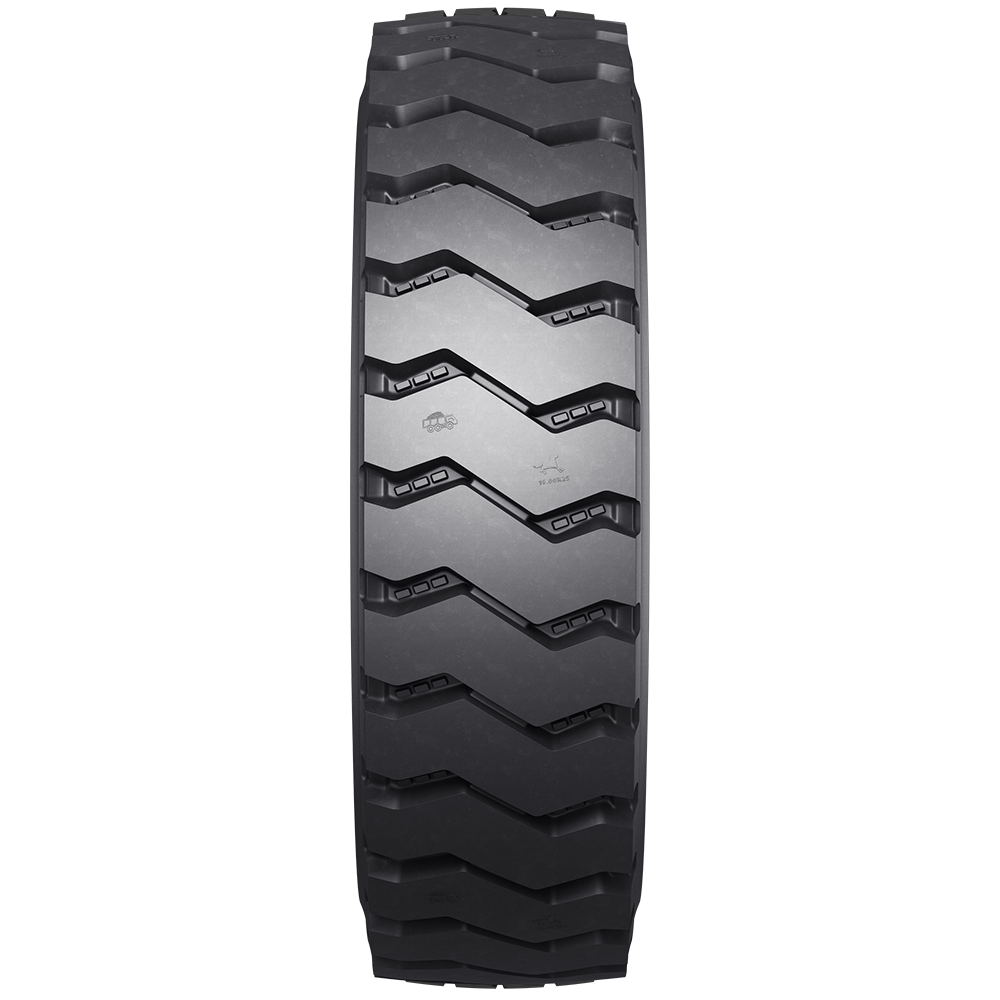

The tough, grippy tread delivers excellent wear and traction with its crosswise lugs and grooves.

The lugs are connected by rubber ribs that add to the tire's stability and long life.

SPEC

25”

Size

TRA

Star Rating

Rim

Tread depth(mm)

Section width

(mm)

OD

(mm)

Load index/

Speed symbol

Inflation A2

 (10km/h)
kpa

Inflation B

 (50km/h)
kpa

14.00R25

E-3

★★★

10.00/2.0

30

375

1370

169B/188A2

950

700

16.00R25

E-3

★★★

11.25/2.0

32.5

430

1495

180B/198A2

900

800
